Product description
Say Goodbye to Traditional Portable Barcode Scanner

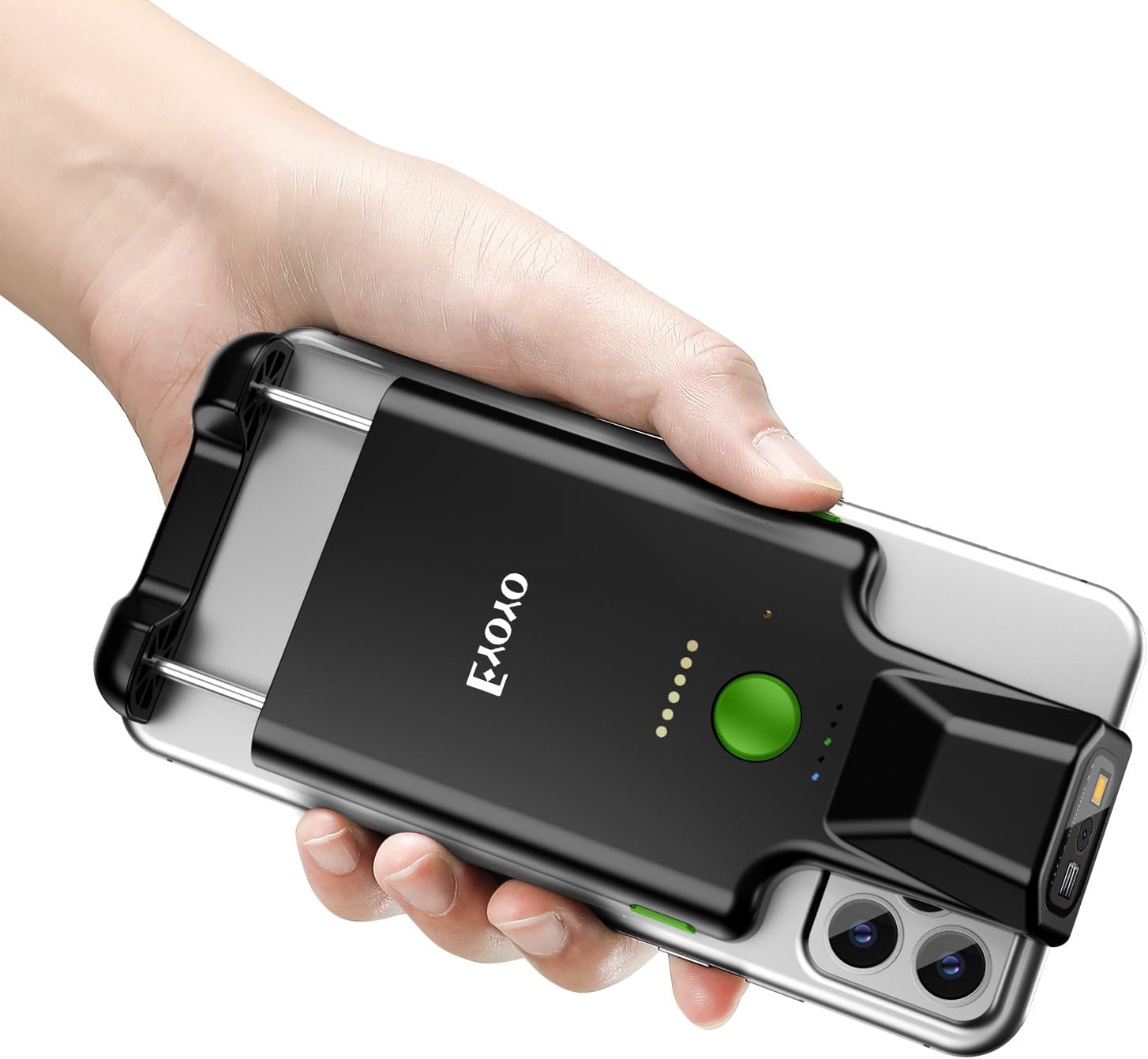

Eyoyo Upgraded 2D Bluetooth Back-Clip Barcode Scanner for Phone – the perfect mobile scanning companion. This compact scanner clips seamlessly onto your phone, pairing effortlessly via Bluetooth. Instantly capture barcode data and sync quantities directly to your device, streamlining workflow with intelligent operation.
HOW TO USE THE BLUETOOTH BARCODE SCANNER WITH YOUR PHONE?
1. When you turn on the barcode scanner, you will see the blue light flash.
2. Navigate to your phone’s Settings application, Under Settings, find the Bluetooth option and make sure it is set to “On”
3. Once Bluetooth is enabled, select your scanner named "EY-017ZP" from the list of available devices.
Please Be Note:
1. Without a phone case, it can work from 135mm/5.31 inch to 170mm/6.69-inch size phone.
2. If your phone with a simple phone case, like a silica gel case, or a thin phone case, it can support work from 135mm/5.31 inch to 168mm/6.61-inch size phone.
3. But if your phone case has solid bumps on the back or is too thick, it may not be supported to work with our scanner.
3 Scanning Mode:

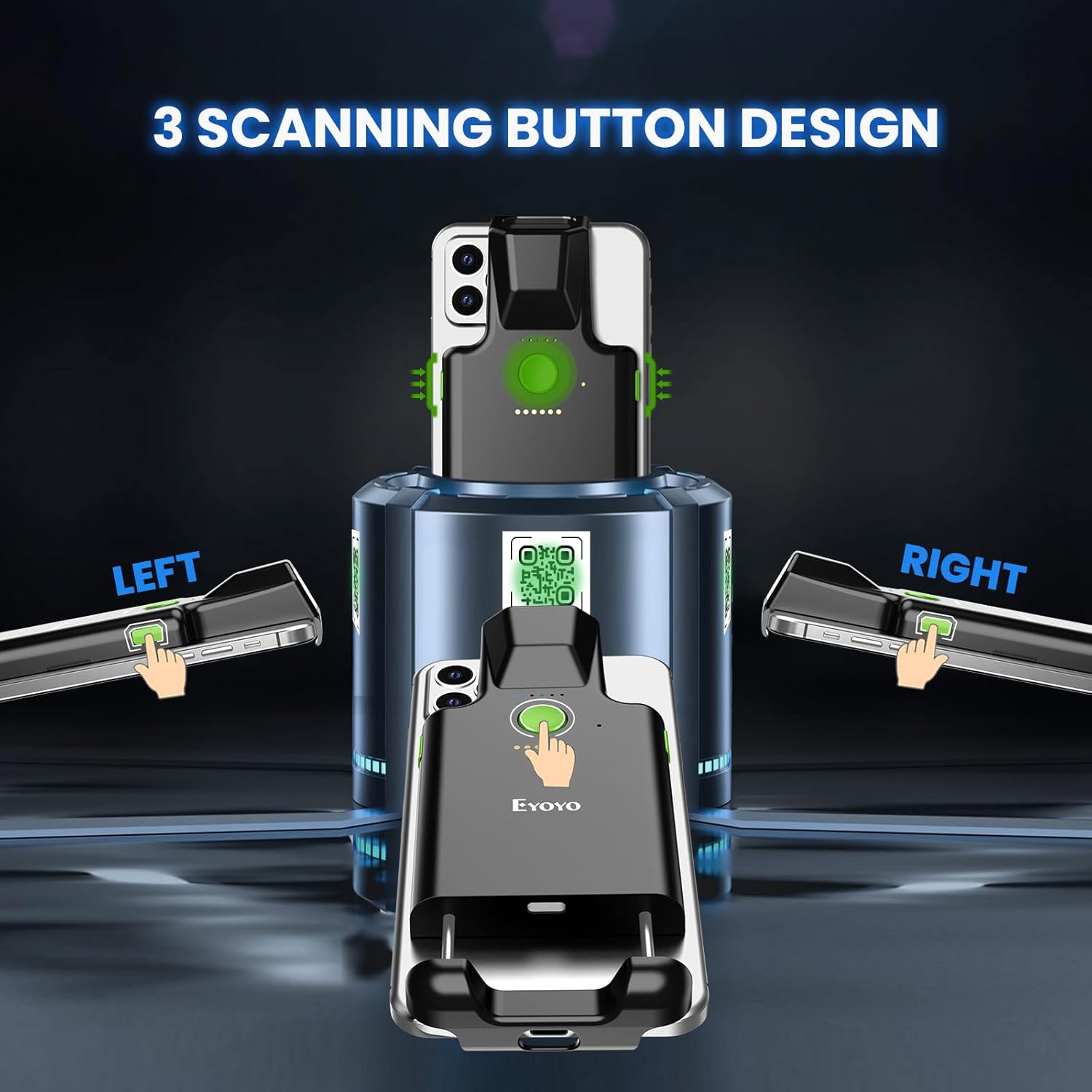

- Manual Trigger Mode: You need to press the trigger button to scan the barcodes. (Most frequently-used method)
- Continuous Scan Mode: The scanning light is always on when the scanner is electrified. You can scan the barcode without pressing any trigger button. (Especially fits for the production line at factories)
- Auto-Sense mode: The scanning light is off until you put the barcode in front of the scanning window. Once the barcode is detected, the scanning light will turn on. You can also scan the barcode without pressing any trigger button. (Especially fits for retail stores, and inventory warehouses.)
Advantage
- Bluetooth Connection: With Bluetooth function, you can connect with your phone, iPad, tablet, or computer. Note: Your device must support Bluetooth function and can work with our scanner.
- 1D & 2D Barcode Decode: Support scan most of 1D, 2D barcode from paper, label and screen.
- Compatible Barcode Type: 1D: UPC, EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5, MSI, GS1, Codabar 2D: QR, DataMatrix, PDF417, Aztec, Hanxin, Micro PDF417, and so on.
- Instant upload mode: The scans are uploaded directly to the computer via a USB cable or wireless connection.
- Storage mode: If a barcode is scanned, the scanned data are automatically stored in the scanner's internal storage, then scan the setting code to upload the data to the device.
- Add custom prefixes/ suffixes, and delete characters.
- 1600mAh Rechargeable Battery: EY-017 Use a 1600mAh rechargeable battery, the scanner has 10 hours of continuous scanning. It can work for about two weeks in daily use after full charge. It takes 1.5 hours to fully charge the scanner.
